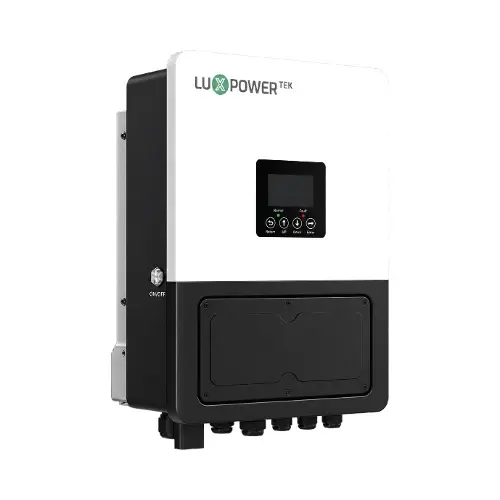

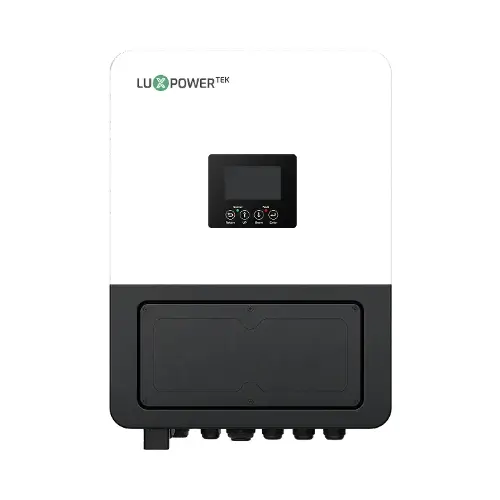

The Luxpower 8kW Hybrid Inverter is a single-phase solar hybrid inverter with 8000W output and 12kW PV input. It suits homeowners, smallholdings and small businesses across South Africa that have outgrown a 5kW system.
As an 8kW inverter with battery storage, it keeps pumps, stoves and office loads running on solar. Compare it with our Hybrid Inverters range by output. Our Inverters range also covers off-grid and 3-phase models.
Why Choose the Luxpower 8kW Hybrid Inverter
- Up to 12kW solar PV input across two independent MPPTs.
- Handles 48V lithium batteries with up to 180A charge and discharge.
- IP66 rating with built-in Type II AC/DC surge protection.
Its multifunctional GEN port handles generator integration, Smart Load and AC Coupling. Zero Export control, Time-of-Use scheduling and peak shaving raise solar self-consumption. LuxCloud adds remote monitoring, diagnostics and OTA firmware updates.
Key Specifications at a Glance
- Brand: Luxpower.
- Model: GEN3-LB-EU 8K.
- Display & Communication interface: LCD, RS485, Wifi, CAN.
- Noise emission: < 50dB.
- Max. PV input voltage: 530V.
- MPPT voltage range: 150 ~ 425V.
- Compatible battery type: Lithium-ion / Lead-Acid.
- Rated battery voltage: 48V.
- Rated output power: 8000W.
- Max. PV input power: 12000W.
- Rated PV input voltage: 360V.
- Number of independent MPPT inputs: 2 / (1:1).
- Surge power, duration: 2 × rated power for 10s.
- Switching time: 7ms.
- Wave form: Sine wave.
- MPPT efficiency: 99.9%.
- EU efficiency: 95.9%.
- Max. efficiency: 97.0%.
- Max. charge / discharge efficiency: 95.0%.
- Over current / voltage protection: YES.
- Anti-islanding protection: YES.
- AC short-circuit current protection: YES.
- Leakage current protection: YES.
- AC / DC surge protection: Type II.
- Ingress protection rating: IP66.
- Weight: 22.5kg.
- Dimensions (W x H x D): 416 x 538.5 x 229.5mm.
- Warranty: 5 / 10 years.
Battery Compatibility And Fit
This Luxpower hybrid inverter works with 48V lithium batteries that offer supported BMS communication. Suitable options include Luxpower, Dyness and Hinaess units. For a matched-brand setup, pair it with the Luxpower 15kWh lithium battery.
Confirm your battery against Luxpower’s compatibility list before you order. Poor BMS communication leaves charging poorly managed, which wastes much of the hybrid advantage. The Luxpower manufacturer product page lists full parameters, the datasheet and the user manual.
Size PV strings to the inverter’s input limits with JA Solar, Jinko Solar or Longi panels. You’ll find matching batteries and accessories on our Luxpower brand page. More sizes sit in our Luxpower inverter range.
Add solar fuses, DC surge protectors and battery fuses sized to the system. On the AC side, fit a solar distribution board and changeover switch for essential loads.
It won’t work with high-voltage stacks such as the Deye BOS-A HV range. Battery banks at 12V or 24V are also unsuitable.
Best Use Cases in South Africa
- Homeowners running geysers on timers, stoves and pumps.
- Smallholdings powering water pumps and farm loads from solar.
- Small businesses keeping office equipment and lighting online.
When an 8kW Inverter Fits
Rising Eskom tariffs and unreliable grid supply push many households beyond a 5kW system. Step up when peak loads regularly exceed 5kW, or when you plan to add more panels.
Use our solar panel and battery calculator to estimate the array and storage you need. If your loads are lighter, the Luxpower 6.5kW hybrid inverter is the next size down.
Developers and installers comparing hybrid inverter price and features can weigh it against the Deye 8kW hybrid inverter. For a complete system, browse our 8kW solar packages.
Warranty Compliance And Trust
Luxpower covers this unit with a warranty of 5 / 10 years. Our installations include a 12-month workmanship warranty, confirmed with your quote. Payment options include EFT, card, cash and PayFast.
Grid-tied use requires NRS 097-2-1 compliance, so check the model appears on your municipality’s approved inverter list. Installers follow SANS 10142-1 for the AC side and SANS 10142-1-2 for the DC side. After installation, a registered electrician issues an Electrical Certificate of Compliance (CoC).
SSEG registration with the municipality or Eskom must happen before you connect to the grid. The IP66 enclosure rating follows the IEC 60529 IP Code standard.
With 13 years of experience and 500+ jobs completed, Solar Panel Energy supplies Luxpower systems nationwide. You get nationwide delivery in 2 to 5 working days. See how we support Luxpower inverters in South Africa.
Order the Luxpower 8kW Hybrid Inverter today, or request a free quote for system sizing.
Last Updated: October 2026.
