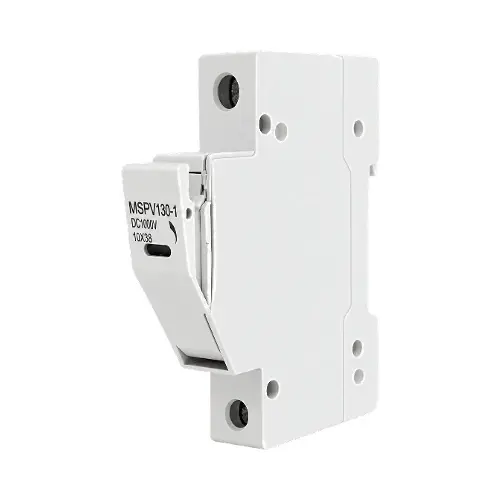

The Fuse Holder 32A 1000VDC is a compact single-pole holder for 10x38mm gPV fuses. It suits solar installers, homeowners, farms, and factories wiring DC strings in South Africa. The unit clips onto DIN rail or bolts to a panel, keeping string protection neat and serviceable. It’s a small part that does big work for energy independence.
Key Benefits of the 1000V Fuse Holder
- Rated 1000V DC and 32A for solar strings.
- Flame-retardant housing improves panel safety.
- DIN rail or panel mount fits most enclosures.
- Accepts up to 16mm squared copper cable.
- Operates from minus 25 to plus 85 degrees.
Specifications |
|
|---|---|
| Voltage Rating | 1000V DC |
| Current Rating | 32A |
| Holds | 1 x 22mm x 58mm fuse |
| Fuse Size | 10x38mm gPV type |
| Mounting | DIN rail or panel mount |
| Material | Flame-retardant housing |
| Application | Photovoltaic and industrial |
| Terminal Size | Up to 16mm squared |
| Operating Temperature | -25 to +85 degrees C |
What Is Included in the Box
- One single-pole 1000V DC Fuse Holder.
- Mounting hardware where applicable.
- Basic user instructions for installation.
- Warranty card from Solar Panel Energy.
Compatibility With Solar Systems
This Fuse Holder accepts any 10x38mm gPV fuse up to 32A. It pairs neatly with our 20A solar fuse on smaller strings. Larger arrays work well with a 25A gPV fuse or the 30A gPV fuse for higher currents.
- Works with Deye, Luxpower, and SRNE DC inputs.
- Suits JA Solar, Jinko, Longi, and CNBM panels.
- Fits standard DIN rails inside DB boards.
Common Use Cases Around the Home and Farm
- Rooftop PV string protection on homes.
- Farm pump arrays and off-grid sheds.
- Factory DC distribution boards and combiners.
- Backup systems covering daily loadshedding hours.
Is the Fuse Holder Good for Solar DC
Yes, the 1000V DC rating suits most residential and commercial PV arrays in South Africa. It protects wiring from overcurrent faults and helps isolate fuses during service. That saves time on call-outs and reduces Eskom-linked downtime during repairs.
Frequently Asked Questions
Q. What fuse size fits this Fuse Holder?
A. It accepts standard 10x38mm gPV solar fuses up to 32A at 1000V DC.
Q. Can I mount it on DIN rail?
A. Yes, the Fuse Holder clips onto 35mm DIN rail or bolts directly to a panel.
Q. Is it safe for rooftop solar arrays?
A. Yes, the flame-retardant housing and 1000V DC rating cover most South African PV strings.
Q. What cable size does it accept?
A. Terminals take copper cable up to 16mm squared, which covers most 4mm and 6mm solar cables.
Q. Do you deliver across South Africa?
A. Yes, we deliver in 2 to 5 working days from our seven warehouses nationwide.
